To replace the throttle cable on your Troy Bilt lawn mower quickly, start by disconnecting the spark plug for safety, then locate the cable connected to the carburetor and the throttle lever. Remove the old cable from its mounting points and install the new one, ensuring it is routed properly and secured tightly. Finally, reconnect the cable, adjust the tension for smooth operation, and test your mower to ensure everything runs smoothly.
Replacing the throttle cable on a Troy Bilt mower is a straightforward process that can be done with basic tools. First, gather your replacement cable and tools, then carefully remove the old cable from its attachments. Carefully route the new cable, install it securely, and make necessary adjustments to ensure smooth throttle control. This quick fix can restore your mower’s performance and extend its lifespan with minimal effort.
If your Troy Bilt lawn mower is not responding well when you pull the throttle, it’s probably time for a cable replacement. The process is simple and can be accomplished in just a few steps. By removing the old cable and installing a new one, you’ll regain precise control of your mower’s engine speed. Not only will this improve your mowing experience, but it will also help prevent further engine issues caused by a malfunctioning throttle cable.
How to Replace Throttle Cable on Troy Bilt Lawn Mower
Replacing the throttle cable on your Troy Bilt lawn mower might seem tricky at first, but with some basic tools and clear guidance, you can handle this task yourself. The throttle cable controls the engine speed, so a broken or sticking cable can make mowing difficult or unsafe. Learning how to replace it ensures your mower runs smoothly and prolongs its lifespan.
Understanding the Throttle Cable and Its Role
The throttle cable connects the throttle lever on the handle to the carburetor on your lawn mower. It regulates the engine speed by opening and closing the throttle plate. When the cable is faulty or damaged, the mower might not respond properly to throttle adjustments, or it might not start at all.
Before replacing, inspect the cable for signs of damage, such as fraying, kinks, or corrosion. If you notice any of these issues, it’s time for a replacement. Knowing the specific type of cable used in your Troy Bilt model is essential for selecting the right replacement part.
Tools and Supplies Needed
- New throttle cable compatible with your Troy Bilt model
- Screwdrivers (Phillips and flat-head)
- Socket set or wrench set
- Pliers
- Work gloves for safety
- Cleaning cloth for wiping parts
Preparing Your Workspace
Choose a clean, flat surface with good lighting to work comfortably. Disconnect the spark plug wire to prevent accidental starting. Having all your tools within reach makes the process go smoothly.
Step-by-Step Guide to Replacing the Throttle Cable
1. Remove the Mower Deck Cover (if necessary)
Depending on your model, you might need to take off the mower deck cover or side panels to access the throttle cable. Use screwdriver and wrench to remove screws or bolts securing these panels. Keep the screws in a safe place for reassembly.
2. Locate the Throttle Cable
Follow the cable from the throttle lever on the handle down to the carburetor. Note how the cable is routed and connected at each end. Take pictures if needed for reference during reinstallation.
3. Detach the Throttle Cable from the Throttle Lever
Loosen any clips or screws holding the cable to the throttle lever on the handlebar. Gently pull the cable out from its mounting point, ensuring you do not damage other components.

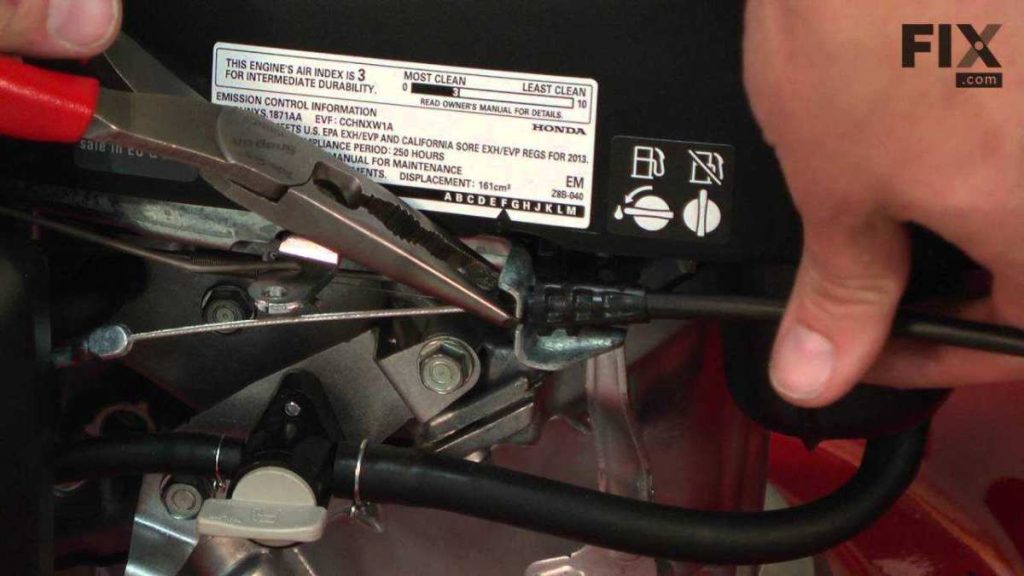

4. Disconnect the Cable from the Carburetor
Find the cable’s connection to the carburetor throttle plate. Usually, it’s attached with a clip or screw. Use pliers or screwdriver to carefully detach the cable from the carburetor. Remember the cable’s routing for the new installation.
5. Remove the Old Cable Completely
After disconnecting from both ends, carefully pull out the old cable. Be cautious not to damage nearby parts or cables in the process.
Installing the New Throttle Cable
1. Check the New Cable
Compare the new cable with the old one to ensure proper length and connector types. Confirm it’s compatible with your Troy Bilt model before proceeding.
2. Attach the Cable to the Carburetor
Insert the cable end into the carburetor’s throttle linkage, securing it with the original clip or screw. Make sure the connection is tight and the linkage moves smoothly when you pull the cable.
3. Connect the Cable to the Throttle Lever
Route the cable along the same path as the original, avoiding sharp bends or pinch points. Attach it securely to the throttle lever on the handlebar, ensuring the cable can freely move when you operate the lever.
4. Adjust the Cable Tension
Proper tension is crucial for throttle responsiveness. Loosen or tighten the cable adjustment nuts so that the throttle responds accurately without excess slack or tightness.
Testing and Final Checks
Reconnect the spark plug wire and start your mower. Test the throttle lever to see if it adjusts engine speed properly. Ensure that the throttle responds smoothly and holds its position.
If the throttle is too loose or too tight, revisit the adjustment nuts and make necessary fine-tuning. Confirm all screws and clips are securely fastened before reassembling the mower’s panels.
Reassembly and Safety Tips
Replace any panels or covers removed earlier, tightening all screws securely. Clean up your workspace and double-check that no loose tools or parts are left behind.
Always wear safety gear during this process and handle tools carefully. After completing the replacement, run the mower for a few minutes to ensure everything operates correctly. Proper maintenance of the throttle cable can extend the life of your lawn mower and keep it running efficiently.
Additional Tips for Maintaining Your Throttle Cable
- Regularly inspect the cable for signs of wear or damage, especially after heavy use.
- Lubricate the cable with a suitable lubricant to prevent rust and ensure smooth operation.
- Avoid forcing the throttle lever or cable, as this can cause premature wear.
By following these detailed steps, you can confidently replace the throttle cable on your Troy Bilt lawn mower, ensuring it performs reliably for years to come. Proper installation and maintenance of the cable are key to safe and effective mowing.
Troy-Bilt Lawn Mower Drive Control Cable Replacement (946-04655A)
Frequently Asked Questions
What tools do I need to replace the throttle cable on my Troy-Bilt lawn mower?
You will need a pair of pliers, screwdrivers (both flathead and Phillips), a socket wrench set, and possibly a new throttle cable compatible with your mower model. Having gloves and safety glasses on hand is also recommended for safety during the process.
How do I locate the throttle cable on my Troy-Bilt mower?
Start by turning off the mower and disconnecting the spark plug to prevent accidental starting. Follow the cable from the carburetor to the throttle lever; it is usually routed along the chassis and connects to the throttle control lever or pedal. Refer to your mower’s user manual for specific routing details if needed.
What steps should I follow to detach the old throttle cable safely?
First, loosen any clips or clamps holding the cable in place. Then, disconnect the cable from the throttle lever on the carburetor by removing the retaining pin or clip. Carefully pull the cable out from its routing path, ensuring you do not damage surrounding components. Take note of the cable’s routing for installation of the new cable.
How do I install a new throttle cable onto my Troy-Bilt lawn mower?
Begin by routing the new cable along the same path as the old one, securing it with clips or clamps. Connect the cable to the throttle lever on the carburetor, ensuring it moves smoothly without binding. Attach the other end to the throttle control mechanism inside the mower’s handle or dashboard. Adjust the tension as needed to ensure proper throttle operation.
What adjustments are necessary after replacing the throttle cable?
After installation, start the mower and test the throttle response. Adjust the cable tension by loosening or tightening the adjustment nuts or screws until the throttle opens and closes smoothly. Make sure the engine responds accurately to throttle inputs and that the cable does not slip or bind during operation.
Final Thoughts
To replace the throttle cable on a Troy Bilt lawn mower, start by disconnecting the spark plug to ensure safety. Remove the cover or shield to access the cable connection points. Detach the old cable from the throttle and carburetor carefully.
Next, attach the new cable, ensuring it is routed correctly along the mower’s frame. Secure all connections firmly and replace any removed covers. Double-check that the throttle responds smoothly.
In conclusion, knowing how to replace throttle cable on Troy Bilt lawn mower simplifies maintenance and keeps your mower running efficiently. Proper installation ensures optimal performance and prolongs the lifespan of your machine.
