To quickly adjust the carburetor on your Briggs and Stratton lawn mower, start by locating the adjustment screws—usually labeled as “L” (low speed) and “H” (high speed). Turn these screws gradually to fine-tune the engine’s performance until it runs smoothly.
In just a few simple steps, you can ensure your mower runs efficiently and starts easily. First, check the owner’s manual for specific adjustment points, then make small turns to the screws while the engine is running to find the optimal settings. Proper adjustment helps prevent stalling, rough idling, and poor fuel economy, saving you time and money in the long run.
If your Briggs and Stratton mower isn’t starting properly or runs unevenly, adjusting the carburetor is the solution. It’s a straightforward process that involves tweaking the screws for better fuel and air mixture, ensuring your mower operates at its best. With a bit of patience and attention, you’ll keep your lawn looking pristine without the hassle of frequent repairs or replacements.
How to Adjust Carburetor on Briggs and Stratton Lawn Mower
Adjusting the carburetor on a Briggs and Stratton lawn mower is an important task that can help improve the engine’s performance and fuel efficiency. Proper adjustment ensures that the mower runs smoothly, starts easily, and cuts the grass evenly. This guide provides clear, step-by-step instructions to help you make these adjustments safely and effectively.
Understanding the Carburetor’s Role in Your Lawn Mower
The carburetor mixes air and fuel in the correct ratio for combustion. When it functions properly, the mower will start easily and run smoothly at all speeds. Over time, dirt, debris, or adjustments can affect its performance, leading to problems such as sputtering, hard starting, or poor acceleration.
Tools and Materials Needed for Adjustment
- Flat-head screwdriver
- Screwdriver with Phillips head
- Carburetor cleaner spray
- Clean cloth or rag
- Protective gloves
- Owner’s manual for your specific mower model
Locating the Carburetor on Your Briggs and Stratton Mower
The carburetor is typically located on the side of the engine, connected to the air filter and fuel lines. Consult your mower’s manual if you’re unsure about its exact location. Clear access is important for a successful adjustment.
Preparing for Adjustment
Before adjusting, ensure the engine is off and cooled down. Disconnect the spark plug wire to prevent accidental starting. Remove the air filter cover to access the carburetor. Wipe surrounding areas to prevent dirt from entering the carburetor during adjustment.
Identifying the Adjustment Screws
Most Briggs and Stratton carburetors have two main screws: the low-speed mixture screw and the high-speed mixture screw. These screws control the air-fuel mixture at different engine speeds. The idle screw is also vital to setting the proper engine idle.
Understanding the Screws
| Screw Type | Purpose | Location |
|---|---|---|
| Low-speed screw | Adjusts mixture at idle and low RPMs | Usually labeled as ‘L’ |
| High-speed screw | Adjusts mixture at high RPMs | Usually labeled as ‘H’ |
| Idle screw | Sets the engine’s idle speed | Often combined with the low-speed screw |
Adjusting the Carburetor Properly
Step 1: Start the Engine and Let It Warm Up
Turn on the mower and let it idle for a few minutes. Warm engine parts respond better to adjustments. Make sure the mower is on a level surface for accurate settings.
Step 2: Adjust the Idle Speed
Locate the idle screw and turn it clockwise to increase engine speed or counterclockwise to decrease. Turn slowly and listen for smooth operation. The engine should run without stalling or racing.
Step 3: Adjust the Low-Speed Mixture
Turn the low-speed screw gently clockwise until it lightly seats. Then, turn it counterclockwise about a quarter turn. Fine-tune by turning slowly clockwise or counterclockwise until the engine runs smoothly at idle. A properly adjusted low-speed mixture prevents stalling and rough idling.
Step 4: Adjust the High-Speed Mixture
This adjustment affects engine power at full throttle. Hold the mower steady and open the throttle to full speed. Turn the high-speed screw clockwise until the engine starts to lean out or sputter. Then, turn it back counterclockwise until the engine idles smoothly and accelerates without hesitation.
Step 5: Test the Performance
Pull the starter cord and run the mower at full throttle. Observe how it responds. If it stalls or runs rough, readjust the high-speed screw accordingly. A smooth, steady engine at full throttle indicates a proper mixture.
Fine-Tuning and Troubleshooting
Common Issues and Solutions
- Engine stalls at idle: Adjust the idle screw and low-speed mixture for smoother operation.
- Difficulty starting or rough running: Check for dirt or debris in the carburetor. Clean with carburetor cleaner if needed.
- Engine runs too rich (black smoke, poor fuel economy): Turn the high-speed screw slightly clockwise to lean the mixture.
- Engine runs too lean (missing, hesitation): Turn the high-speed screw counterclockwise for a richer mixture.
Cleaning the Carburetor

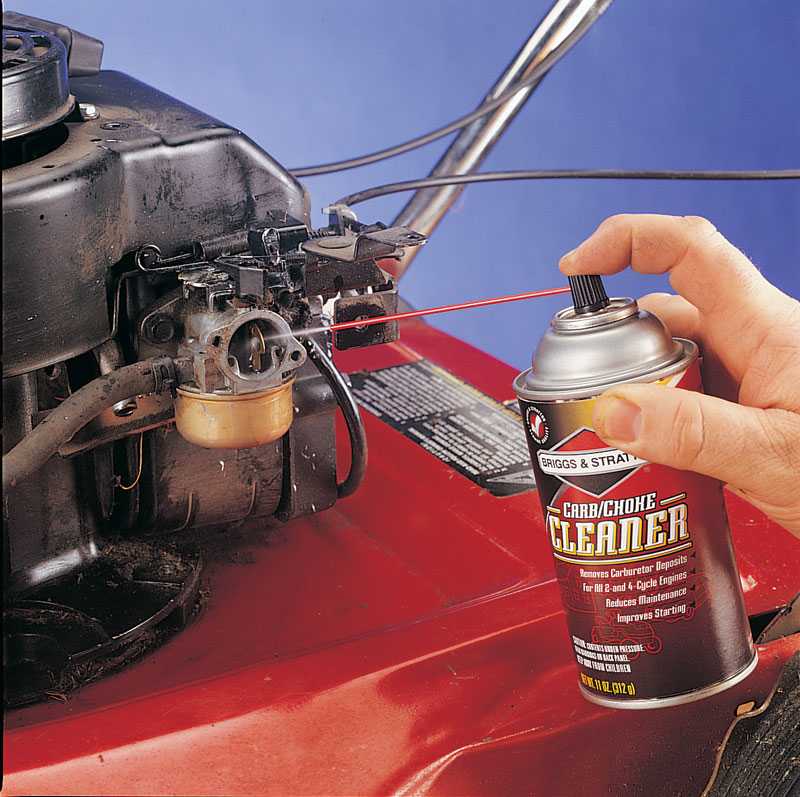

If adjustments don’t improve performance, cleaning the carburetor may be necessary. Remove it carefully, spray with carburetor cleaner, and ensure all passages are clear. Reassemble and make adjustments as described above.
Regular Maintenance Tips
- Change the fuel filter regularly for clean fuel flow.
- Use fresh, clean fuel and add fuel stabilizer if storing the mower for a long time.
- Inspect and replace the air filter regularly to prevent dirt from reaching the carburetor.
- Perform carburetor cleaning and adjustment annually or if performance issues occur.
Safety Precautions When Adjusting the Carburetor
Always work in a well-ventilated area away from flames or heat sources. Wear gloves to protect your skin from fuel and chemicals. Disconnect the spark plug wire to prevent accidental engine starting during maintenance.
Additional Tips for Optimal Performance
- Keep the mower on a level surface during adjustments.
- Make small, incremental adjustments rather than large turns.
- Document your adjustments to return to previous settings if needed.
- Consult your mower’s manual for specific adjustment procedures and specifications.
Adjusting the carburetor on a Briggs and Stratton lawn mower may seem challenging at first, but with patience and proper guidance, you can ensure your mower operates reliably and efficiently. Regular maintenance and correct tuning keep your mower running smoothly, saving you time and effort each cutting season.
HOW-TO ADJUST THE ENGINE RPMS ON A BRIGGS AND STRATTON LAWNMOWER
Frequently Asked Questions
What are the signs that indicate the carburetor needs adjustment on my Briggs and Stratton lawn mower?
If your lawn mower stalls frequently, experiences difficulty starting, or runs unevenly, these signs may indicate the carburetor requires adjustment. Additionally, a black soot buildup around the air filter or fuel leaks can signal issues with the carburetor. Addressing these symptoms promptly can improve your mower’s performance and prevent further problems.
How can I safely adjust the carburetor’s idle speed on my Briggs and Stratton mower?
Locate the idle speed screw on the carburetor, usually marked or accessible through the air filter cover. Start the mower and let it warm up. Turn the screw clockwise to increase the idle speed or counterclockwise to decrease it. Adjust slowly until the engine runs smoothly without stalling or excessive noise. Always make small adjustments and test the mower after each change to ensure optimal operation.
What is the correct way to set the carburetor’s mixture screw for optimal performance?
First, turn the mixture screw gently clockwise until it lightly seats, then turn it counterclockwise about a quarter to a half turn. Start the engine and observe its RPM. Adjust the screw slowly inward or outward to find the point where the engine runs most smoothly and with the highest RPM. Fine-tune the adjustment as necessary, making sure the engine idles steadily and accelerates without hesitation.
Are there any tools I need to adjust the carburetor on my Briggs and Stratton lawn mower?
Typically, you only need a small flathead screwdriver to turn the mixture and idle screws. In some cases, you might require a carburetor cleaner or a wrench to remove the air filter or access screws. Always ensure the mower is turned off and cooled down before working on the carburetor to avoid injury or damage.
How often should I check or adjust the carburetor on my lawn mower?
Check the carburetor if you notice the mower isn’t running smoothly, starting issues, or increased fuel consumption. Regular maintenance, including cleaning and inspection, should happen at least once per mowing season. Adjustments are usually necessary after cleaning or if you change fuel types, to ensure consistent performance.
Final Thoughts
In summary, how to adjust carburetor on briggs and stratton lawn mower involves tuning the screws for optimal performance. Start the engine and listen for irregular idling or rough operation. Turn the idle screw clockwise to increase speed or counterclockwise to slow it down. Adjust the mixture screw for a smooth engine run.
Taking these steps ensures your mower runs efficiently and reliably. Proper carburetor adjustment can extend the mower’s lifespan. Follow these guidelines to keep your lawn mower functioning at its best.
